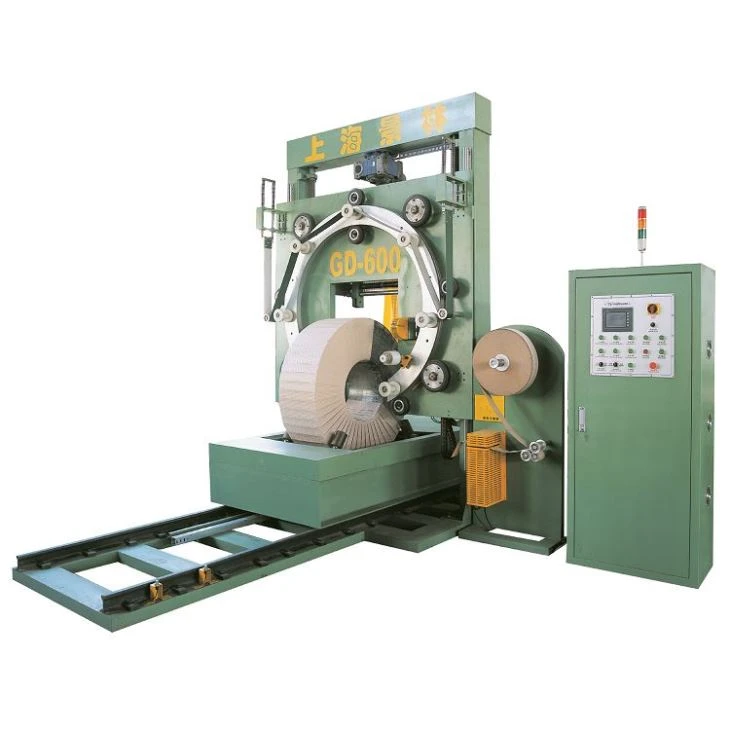

Tsis siv neeg hlau Wrapping tshuab

Lub tshuab tsis siv lub tshuab pauv tsis siv los ntawm Shanghai Jinglin yog tsim rau cov khoom siv tshwj xeeb tshaj plaws rau cov hlau coils, hlau coils, tooj liab, yeeb nkab coils, thiab lwm yam. Nws tuaj yeem tiv thaiv koj cov khoom thiab ua si lub luag haujlwm ntawm cov dej tsis raug, cov plua plav, cov hlua, kev ua kom tsis zoo, kev laus. Lub tshuab tsis tuaj yeem tsuas pab koj txuag lub zog ua haujlwm, txuag qhov chaw hauv koj lub tsev qiv ntawv, txhim kho koj cov hauj lwm ua haujlwm, tab sis kuj yuav zoo rau koj cov khoom pob khoom.

Xa kev nug

Hauj lwm lawm

TSIS SIV NEEG HLAU WRAPPING TSHUAB

SUMMARIZE:

COV NTAWV THOV:

1. Hlau hlau coil

2. Galvanized Hlau xaim hlau

3. Ua ntej txhawj xeeb xaim hlau

4. Stainless hlau coil

5. Copper wire coil

6. Razor hlau coil

7. Kev ruaj ntseg hlau coil

8. Tus pas nrig

INSTALLATION:

Lub tshuab yuav tsum tau muab tso rau hauv lub tiaj & lub zog hauv av, qhov chaw hauv av yuav tsum ntau tshaj 1 tuj / m ² .

YAM NTXIV:

1. Kev tsim, kev ua kom zoo dua nrog cov zog thiab khoom siv tsawg.

2. Tsav trolley kom muaj kev nyab xeeb thiab thauj cov hlua hlau.

3. PLC tau siv rau kev tswj qhov kev tswj tsis tu ncua.HMI rau cov haujlwm khiav lag luam.

4. Tig nrawm nrawm nrawm thiab nro ntawm cov ntaub ntawv nrawm nrawm raug kho.

5. Lub nplhaib & cov voj voog cov menyuam yuav muab kho los ntawm cov hloov khoom siv.

6. Ntim qhov siab ntawm tus wrapper yuav muab kho rau ntau tus ID & OD.

7. Cov khoom siv tiv thaiv kabmob polyurethane yog siv rau kev txhuam kev sib tsoo.

8. Cov thawv ntawv pov npav thiab cov thawv tiv thaiv npog nrog poly urethane.

9. Qhov kev qhia teeb pom kev pom thaum muaj teeb meem tshwm sim.

10. Pib mos, qhov muag nres thiab meej dua ntawm lub nplhaib.

MAIN PARAMETERS:

Qauv	GD300	GD600	GD800
Coil dav	≤ 300	150 hli-600 hli	400mm-800 hli
Coil OD	≤1500	800mm-1600 hli	1000 hli-1900 hli
Coil ID	508 / 610mm	508mm / 610mm	508mm / 610mm
Coil hnyav	≤2000Kg	300kg-6000Kg	1000Kg-12000kg
Nplhaib ceev	Pom zoo. 20-90r / min	Pom zoo. 20-80r / min	Pom zoo. 20-60r / min
Cov tub ceev xwm ceev	5-8m / min	5-8m / min	5-8m / min
Fais fab tso zis	2.0KW	3.5KW	4.5KW
Lub hwj chim	AC / 380V / 50Hz	AC / 380V / 50Hz	AC / 380V / 50Hz
Pa cua	6-8kgf / cm ²	6-8kgf / cm ²	6-8kgf / cm ²
Cov khoom siv	Daim ntaub nplaum / ntawv xov xwm / VCI daim ntawv / lwm yam: dav: 80-100 hli; ID: 55mm; OD≤500mm	Daim ntaub nplaum / ntawv xov xwm / VCI daim ntawv / lwm yam: dav: 80-100 hli; ID: 55mm; OD≤500mm	Daim ntaub nplaum / ntawv xov xwm / VCI daim ntawv / lwm yam: dav: 80-100 hli; ID: 55mm; OD≤500mm
Cov khoom siv	Ncab zaj duab xis: dav: 80-100 hli; ID: 50 hli; OD≤150 hli	Ncab zaj duab xis: dav: 80-100 hli; ID: 50 hli; OD≤150 hli	Ncab zaj duab xis: dav: 80-100 hli; ID: 50 hli; OD≤150 hli
Synchronous wrapping system	Yeem xaiv	Yeem xaiv	Yeem xaiv
Automatic manipulator	Yeem xaiv	Yeem xaiv	Yeem xaiv

Lus Cim: cov ntaub ntawv tsuas yog siv rau, lub tshuab yuav ua kev cai tsim raws li ib qho khoom tshwj xeeb.

YUAV TSUM TAU:

Tsis yog.	Nqe lus piav txog yam khoom	Nqi
1	Lub cav loj ntawm lub tshuab wrapping	1set
2	Cutter Board, zaj duab xis tso tawm yam thiab lwm yam.	1set
3	Hluav taws xob tswj txee, guardrail lwm yam	1set
4	Trolley nrog rau kev tsav tsheb thiab kev tshem tawm	1set
5	Kev ua haujlwm phau ntawv thiab spare qhov chaw	1set
